diaedge
AJXU12R0203
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

241146

ANSI

AJXU12R0203

ISO

AJXU12R0203

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

36

Regular price $538.28 USD
Regular price Sale price $538.28 USD
Sale

EDP

241146

ANSI

AJXU12R0203

ISO

AJXU12R0203

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

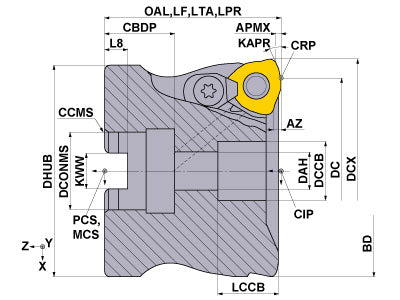

  • Drawings
  • Technical Information
AJXU12R0203
Coolant
Internal
Hand
Right

Unit: inch

DC
1.539
DCX
2
LF
2
APMX
0.079
OAL
2
DCONMS
0.75
NOF
3
ZEFF
3
ZEFP
3
KAPR
22
RMPX
2
GAMF
-4
GAMP
8
WT
1.2
AJXU12R0203

Unit: inch

DC
1.539
DCX
2
LF
2
APMX
0.079
OAL
2
DCONMS
0.75
NOF
3
ZEFF
3
ZEFP
3
KAPR
22
RMPX
2
GAMF
-4
GAMP
8
WT
1.2

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS43 108744 TS43
inventory mark
$2.74
AMS4 100091 AMS4
inventory mark
$8.92
ASS2 242253 ASS2
inventory mark
$0.73
HSCU37513H 242835 HSCU37513H
inventory mark
$19.06
TKY15T 106903 TKY15T
inventory mark
$4.52
AJS4012T15 242288 AJS4012T15
inventory mark
$2.74
