AJXU14R0405E
Skip to product information

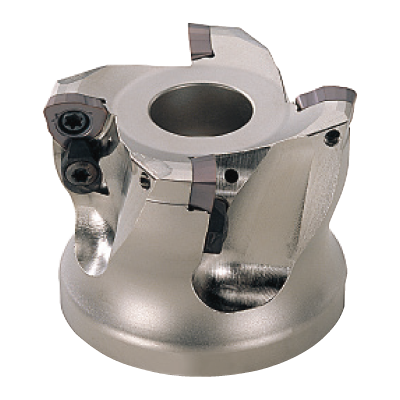

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

241171

ANSI

AJXU14R0405E

ISO

AJXU14R0405E

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
Accuracy_roughing Application_Face milling Application_Slot milling Application_Ramping Application_Pocket milling Helical

9

Regular price $847.27 USD
Regular price Sale price $847.27 USD
Sale

EDP

241171

ANSI

AJXU14R0405E

ISO

AJXU14R0405E

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
Accuracy_roughing Application_Face milling Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

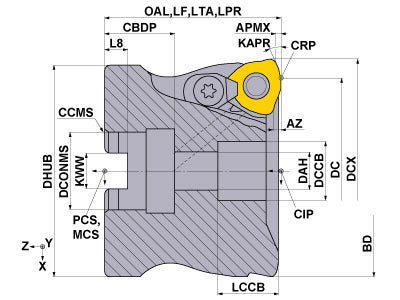

  • Drawings
  • Technical Information
AJXU14R0405E
Coolant
Internal
Hand
Right

Unit: inch

DC
3.531
DCX
4
LF
2.5
APMX
0.079
OAL
2.5
DCONMS
1.5
DCSFMS
3.75
NOF
5
ZEFF
5
ZEFP
5
KAPR
22
RMPX
1.2
GAMF
-3
GAMP
8
WT
6.2
AJXU14R0405E

Unit: inch

DC
3.531
DCX
4
LF
2.5
APMX
0.079
OAL
2.5
DCONMS
1.5
DCSFMS
3.75
NOF
5
ZEFF
5
ZEFP
5
KAPR
22
RMPX
1.2
GAMF
-3
GAMP
8
WT
6.2

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
AJS5014T25 242296 AJS5014T25
inventory mark
$2.96
TS54 135001 TS54
inventory mark
$3.97
AMS5 100092 AMS5
inventory mark
$9.63
TKY25T 106908 TKY25T
inventory mark
$4.47
ASS3 100112 ASS3
inventory mark
$0.79
HSCU75016H 243715 HSCU75016H
inventory mark
$34.31
