diaedge
AJXU12R202WA20S
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

241234

ANSI

AJXU12R202WA20S

ISO

AJXU12R202WA20S

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
Accuracy_roughing Application_Face milling Application_Slot milling Application_Ramping Application_Pocket milling Helical

131

Regular price $474.62 USD
Regular price Sale price $474.62 USD
Sale

EDP

241234

ANSI

AJXU12R202WA20S

ISO

AJXU12R202WA20S

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
Accuracy_roughing Application_Face milling Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

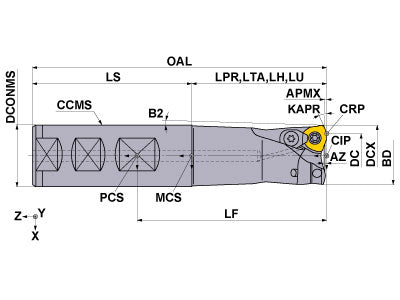

  • Drawings
  • Technical Information
AJXU12R202WA20S
Coolant
Internal
Hand
Right

Unit: inch

DC
0.789
DCX
1.25
LF
6
APMX
0.079
LH
2.75
OAL
6
DCONMS
1.25
NOF
2
ZEFF
2
ZEFP
2
KAPR
22
RMPX
4
GAMF
-4
GAMP
7
AJXU12R202WA20S

Unit: inch

DC
0.789
DCX
1.25
LF
6
APMX
0.079
LH
2.75
OAL
6
DCONMS
1.25
NOF
2
ZEFF
2
ZEFP
2
KAPR
22
RMPX
4
GAMF
-4
GAMP
7

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY15D 106900 TKY15D
inventory mark
$9.97
AMS4 100091 AMS4
inventory mark
$9.63
ASS2 242253 ASS2
inventory mark
$0.79
TS43 108744 TS43
inventory mark
$2.96
AJS4012T15 242288 AJS4012T15
inventory mark
$2.96
