diaedge
AJXU12R243SA24L
Skip to product information

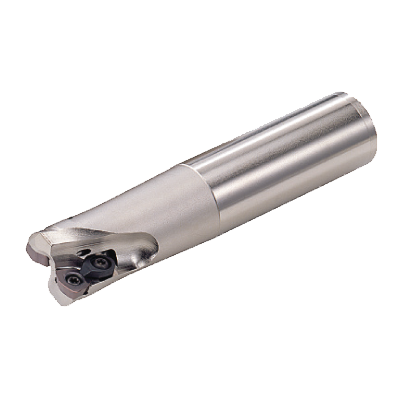

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

241293

ANSI

AJXU12R243SA24L

ISO

AJXU12R243SA24L

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
Accuracy_roughing Application_Face milling Application_Slot milling Application_Ramping Application_Pocket milling Helical

34

Regular price $588.39 USD
Regular price Sale price $588.39 USD
Sale

EDP

241293

ANSI

AJXU12R243SA24L

ISO

AJXU12R243SA24L

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
Accuracy_roughing Application_Face milling Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

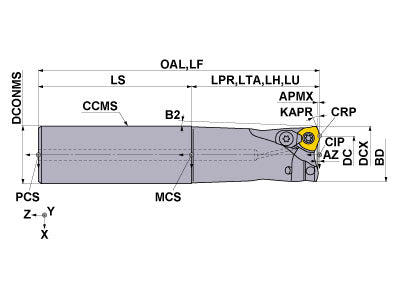

  • Drawings
  • Technical Information
AJXU12R243SA24L
Coolant
Internal
Hand
Right

Unit: inch

DC
1.038
DCX
1.5
LF
10
APMX
0.079
LH
2.75
OAL
10
DCONMS
1.5
NOF
3
ZEFF
3
ZEFP
3
KAPR
22
RMPX
3
GAMF
-6
GAMP
6
AJXU12R243SA24L

Unit: inch

DC
1.038
DCX
1.5
LF
10
APMX
0.079
LH
2.75
OAL
10
DCONMS
1.5
NOF
3
ZEFF
3
ZEFP
3
KAPR
22
RMPX
3
GAMF
-6
GAMP
6

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
AJS4012T15 242288 AJS4012T15
inventory mark
$2.74
TS43 108744 TS43
inventory mark
$2.74
TKY15D 106900 TKY15D
inventory mark
$9.09
AMS4 100091 AMS4
inventory mark
$8.92
ASS2 242253 ASS2
inventory mark
$0.73
