diaedge
AJXU08R122WA12S
Skip to product information

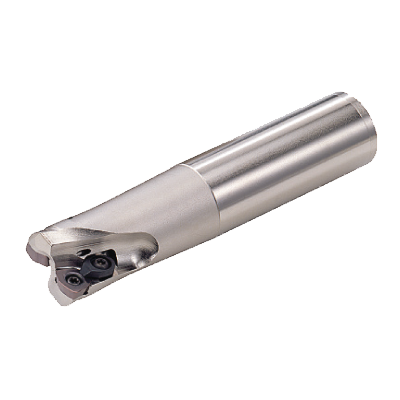

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

241306

ANSI

AJXU08R122WA12S

ISO

AJXU08R122WA12S

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
Accuracy_roughing Application_Face milling Application_Slot milling Application_Ramping Application_Pocket milling Helical

686

Regular price $307.80 USD
Regular price Sale price $307.80 USD
Sale

EDP

241306

ANSI

AJXU08R122WA12S

ISO

AJXU08R122WA12S

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
Accuracy_roughing Application_Face milling Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

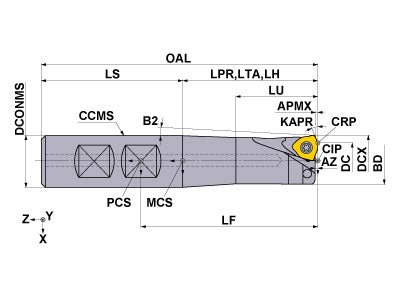

  • Drawings
  • Technical Information
AJXU08R122WA12S
Coolant
Internal
Hand
Right

Unit: inch

DC
0.417
DCX
0.75
LF
4.75
APMX
0.059
LH
2
OAL
4.75
DCONMS
0.75
NOF
2
ZEFF
2
ZEFP
2
KAPR
23.5
RMPX
3.5
GAMF
-5
GAMP
4
AJXU08R122WA12S

Unit: inch

DC
0.417
DCX
0.75
LF
4.75
APMX
0.059
LH
2
OAL
4.75
DCONMS
0.75
NOF
2
ZEFF
2
ZEFP
2
KAPR
23.5
RMPX
3.5
GAMF
-5
GAMP
4

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS33 242721 TS33
inventory mark
$2.96
TKY08D 106895 TKY08D
inventory mark
$14.00
