diaedge
AJXU09R162SA16L
Skip to product information

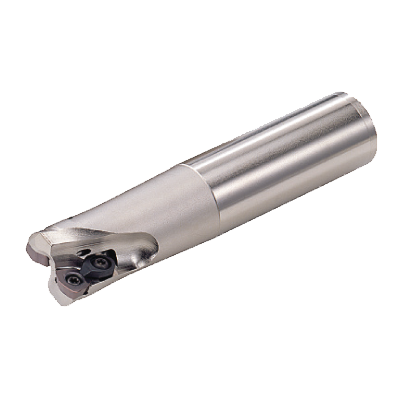

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

241349

ANSI

AJXU09R162SA16L

ISO

AJXU09R162SA16L

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
Accuracy_roughing Application_Face milling Application_Slot milling Application_Ramping Application_Pocket milling Helical

244

Regular price $413.72 USD
Regular price Sale price $413.72 USD
Sale

EDP

241349

ANSI

AJXU09R162SA16L

ISO

AJXU09R162SA16L

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
Accuracy_roughing Application_Face milling Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

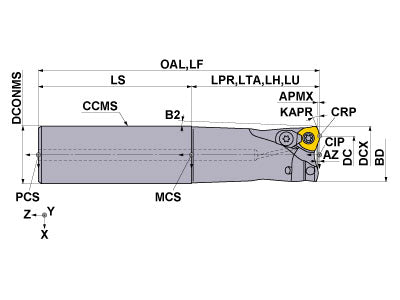

  • Drawings
  • Technical Information
AJXU09R162SA16L
Coolant
Internal
Hand
Right

Unit: inch

DC
0.602
DCX
1
LF
8
APMX
0.079
LH
4.75
OAL
8
DCONMS
1
NOF
2
ZEFF
2
ZEFP
2
KAPR
23.5
RMPX
4
GAMF
-5
GAMP
5
AJXU09R162SA16L

Unit: inch

DC
0.602
DCX
1
LF
8
APMX
0.079
LH
4.75
OAL
8
DCONMS
1
NOF
2
ZEFF
2
ZEFP
2
KAPR
23.5
RMPX
4
GAMF
-5
GAMP
5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
AMS3 242245 AMS3
inventory mark
$8.79
ASS2 242253 ASS2
inventory mark
$0.73
TKY10D 242261 TKY10D
inventory mark
$14.00
TS351 242237 TS351
inventory mark
$2.74
AJS3010T10 242270 AJS3010T10
inventory mark
$2.74
