ASX400R202W20
print open mailer

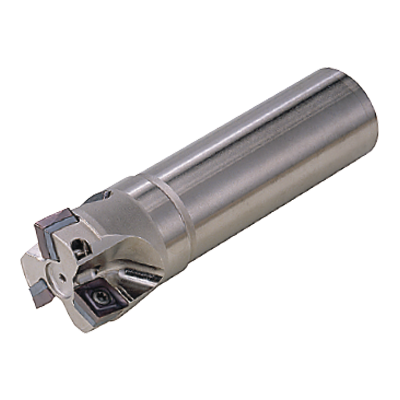

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

250173

ANSI

ASX400R202W20

ISO

ASX400R202W20

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_finishing Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling

Stock
26

Price
$420.95 USD
$420.95 USD
Sale

EDP

250173

ANSI

ASX400R202W20

ISO

ASX400R202W20

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_finishing Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling
View full details
  • Dimensions
  • Features

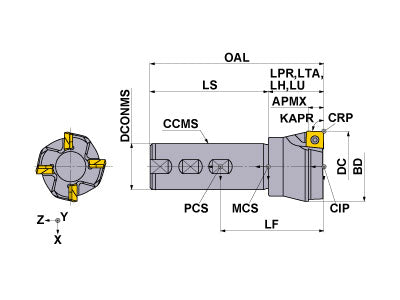

  • Drawings
  • Technical Information
ASX400R202W20
Coolant
External
Hand
Right

Unit: mm

DC
31.75
LF
66.28
APMX
10
LH
38.1
OAL
120.65
DCONMS
31.75
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
GAMF
-12
GAMP
11
ASX400R202W20

Unit: mm

DC
31.75
LF
66.28
APMX
10
LH
38.1
OAL
120.65
DCONMS
31.75
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
GAMF
-12
GAMP
11


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
HKY35R 160338 HKY35R
inventory mark
$4.13
WCS503507H 160291 WCS503507H
inventory mark
$11.31
TPS35 160303 TPS35
inventory mark
$3.36
STASX400N 204281 STASX400N
inventory mark
$10.52
TIP15T 160311 TIP15T
inventory mark
$7.24
