diaedge
ASX400R243W20
Skip to product information

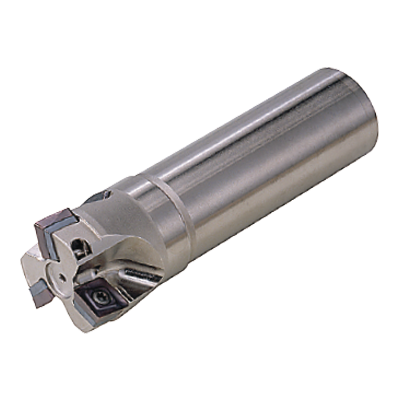

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

250181

ANSI

ASX400R243W20

ISO

ASX400R243W20

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_finishing Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling

27

Regular price $447.93 USD
Regular price Sale price $447.93 USD
Sale

EDP

250181

ANSI

ASX400R243W20

ISO

ASX400R243W20

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_finishing Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling
View full details
  • Dimensions
  • Features

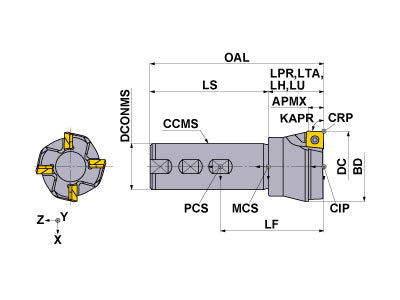

  • Drawings
  • Technical Information
ASX400R243W20
Coolant
External
Hand
Right

Unit: inch

DC
1.5
LF
4.75
APMX
0.394
LH
1.5
OAL
4.75
DCONMS
1.25
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
GAMF
-12
GAMP
11
ASX400R243W20

Unit: inch

DC
1.5
LF
4.75
APMX
0.394
LH
1.5
OAL
4.75
DCONMS
1.25
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
GAMF
-12
GAMP
11

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP15T 160311 TIP15T
inventory mark
$4.52
TPS35 160303 TPS35
inventory mark
$2.74
HKY35R 160338 HKY35R
inventory mark
$3.37
WCS503507H 160291 WCS503507H
inventory mark
$7.37
STASX400N 204281 STASX400N
inventory mark
$7.88
