CCGT09T3V5-FJ VP10RT
Skip to product information

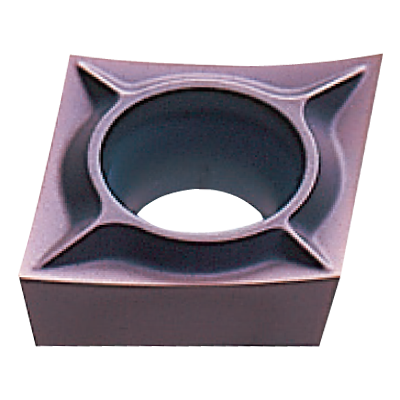

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

251361

ANSI

CCGT32.5V5FJ VP10RT

ISO

CCGT09T3V5-FJ VP10RT

M (Stainless) S (Heat-Resistant)

630

Regular price $24.06 USD
Regular price Sale price $24.06 USD
Sale

EDP

251361

ANSI

CCGT32.5V5FJ VP10RT

ISO

CCGT09T3V5-FJ VP10RT

M (Stainless) S (Heat-Resistant)
View full details
  • Dimensions

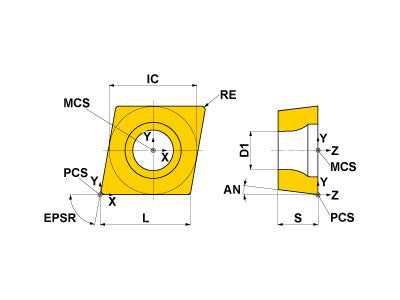

  • Drawings
  • Technical Information
CCGT09T3V5-FJ VP10RT
Hand
Neutral

Unit: mm

TC
G
CNC
2
EPSR
80
IC
9.525
S
3.97
AN
7
RE
0.05
L
9.67
CCGT09T3V5-FJ VP10RT

Unit: mm

TC
G
CNC
2
EPSR
80
IC
9.525
S
3.97
AN
7
RE
0.05
L
9.67
