diaedge
SRM220SAS2
Skip to product information

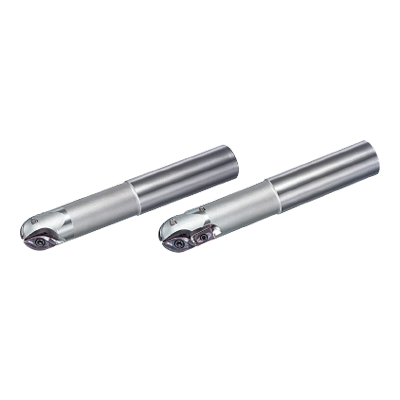

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

252751

ANSI

SRM220SAS2

ISO

SRM220SAS2

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Corner_Radius Slot_Milling_+R Accuracy_3D milling

33

Regular price $450.50 USD
Regular price Sale price $450.50 USD
Sale

EDP

252751

ANSI

SRM220SAS2

ISO

SRM220SAS2

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Corner_Radius Slot_Milling_+R Accuracy_3D milling
View full details
  • Dimensions
  • Features

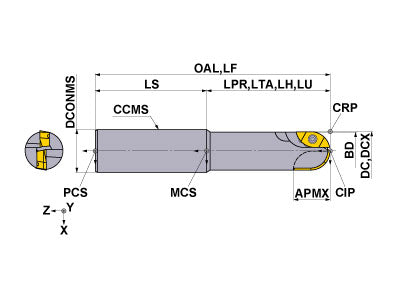

  • Drawings
  • Technical Information
SRM220SAS2
Coolant
Internal
Hand
Right

Unit: inch

DC
1.25
DCX
1.25
LF
5
APMX
1.102
LH
2
OAL
5
DCONMS
1.25
NOF
2
ZEFF
2
ZEFP
2
SRM220SAS2

Unit: inch

DC
1.25
DCX
1.25
LF
5
APMX
1.102
LH
2
OAL
5
DCONMS
1.25
NOF
2
ZEFF
2
ZEFP
2

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS55 206771 TS55
inventory mark
$2.74
TKY25T 106908 TKY25T
inventory mark
$4.03
