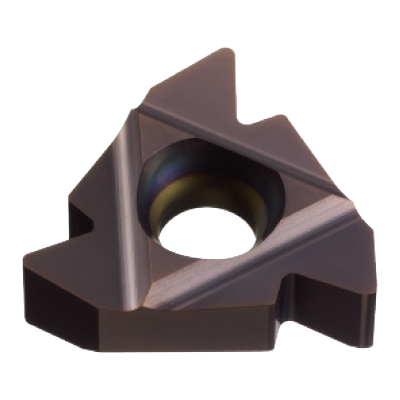

MMT16ER120UNJ VP10MF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

261737

ANSI

MMT16ER120UNJ VP10MF

ISO

MMT16ER120UNJ VP10MF

P (Steel) K (Cast Iron) S (Heat-Resistant) H (Hard material)

30

Regular price $37.13 USD
Regular price Sale price $37.13 USD
Sale

EDP

261737

ANSI

MMT16ER120UNJ VP10MF

ISO

MMT16ER120UNJ VP10MF

P (Steel) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions

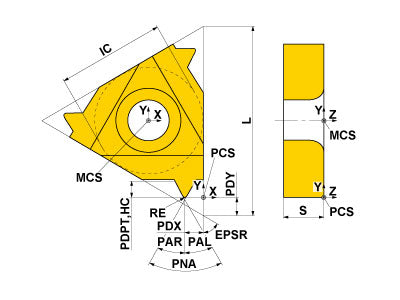

  • Drawings
  • Technical Information
MMT16ER120UNJ VP10MF
Hand
Right

Unit: mm

IC
9.525
PNA
60
S
3.44
PDX
1.3
PDY
1.1
RE
0.33
L
16.5
EPSR
60
MMT16ER120UNJ VP10MF

Unit: mm

IC
9.525
PNA
60
S
3.44
PDX
1.3
PDY
1.1
RE
0.33
L
16.5
EPSR
60
