diaedge

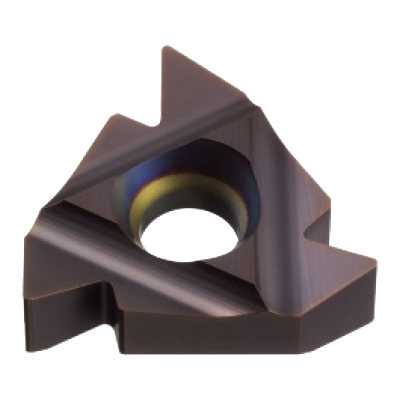

MMT16IR120UN VP10MF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

262191

ANSI

MMT16IR120UN VP10MF

ISO

MMT16IR120UN VP10MF

P (Steel) K (Cast Iron) S (Heat-Resistant) H (Hard material)

40

Regular price $32.30 USD
Regular price Sale price $32.30 USD
Sale

EDP

262191

ANSI

MMT16IR120UN VP10MF

ISO

MMT16IR120UN VP10MF

P (Steel) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions

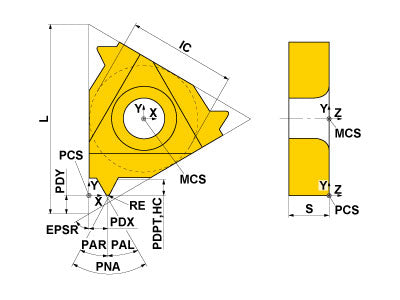

  • Drawings
  • Technical Information
MMT16IR120UN VP10MF
Hand
Right

Unit: mm

IC
9.525
PNA
60
S
3.44
PDX
1.4
PDY
1.1
RE
0.18
L
16.5
EPSR
60
MMT16IR120UN VP10MF

Unit: mm

IC
9.525
PNA
60
S
3.44
PDX
1.4
PDY
1.1
RE
0.18
L
16.5
EPSR
60
