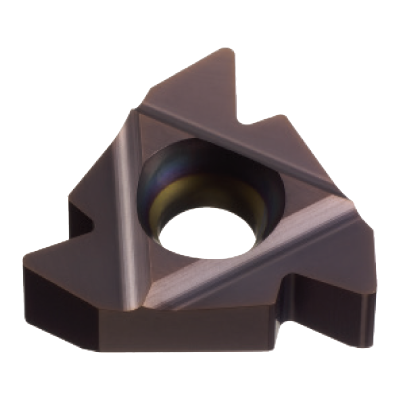

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

263708

ANSI

MMT22ER070UN VP10MF

ISO

MMT22ER070UN VP10MF

P (Steel) K (Cast Iron) S (Heat-Resistant) H (Hard material)

15

Regular price $50.20 USD
Regular price Sale price $50.20 USD
Sale

EDP

263708

ANSI

MMT22ER070UN VP10MF

ISO

MMT22ER070UN VP10MF

P (Steel) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions

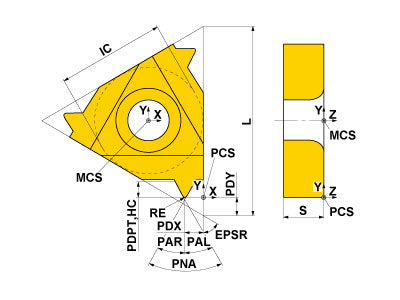

  • Drawings
  • Technical Information
MMT22ER070UN VP10MF
Hand
Right

Unit: mm

IC
12.7
PNA
60
S
4.64
PDX
2.3
PDY
1.6
RE
0.47
L
22
EPSR
60
MMT22ER070UN VP10MF

Unit: mm

IC
12.7
PNA
60
S
4.64
PDX
2.3
PDY
1.6
RE
0.47
L
22
EPSR
60
