CCGT09T301R-SS VP15TF
Skip to product information

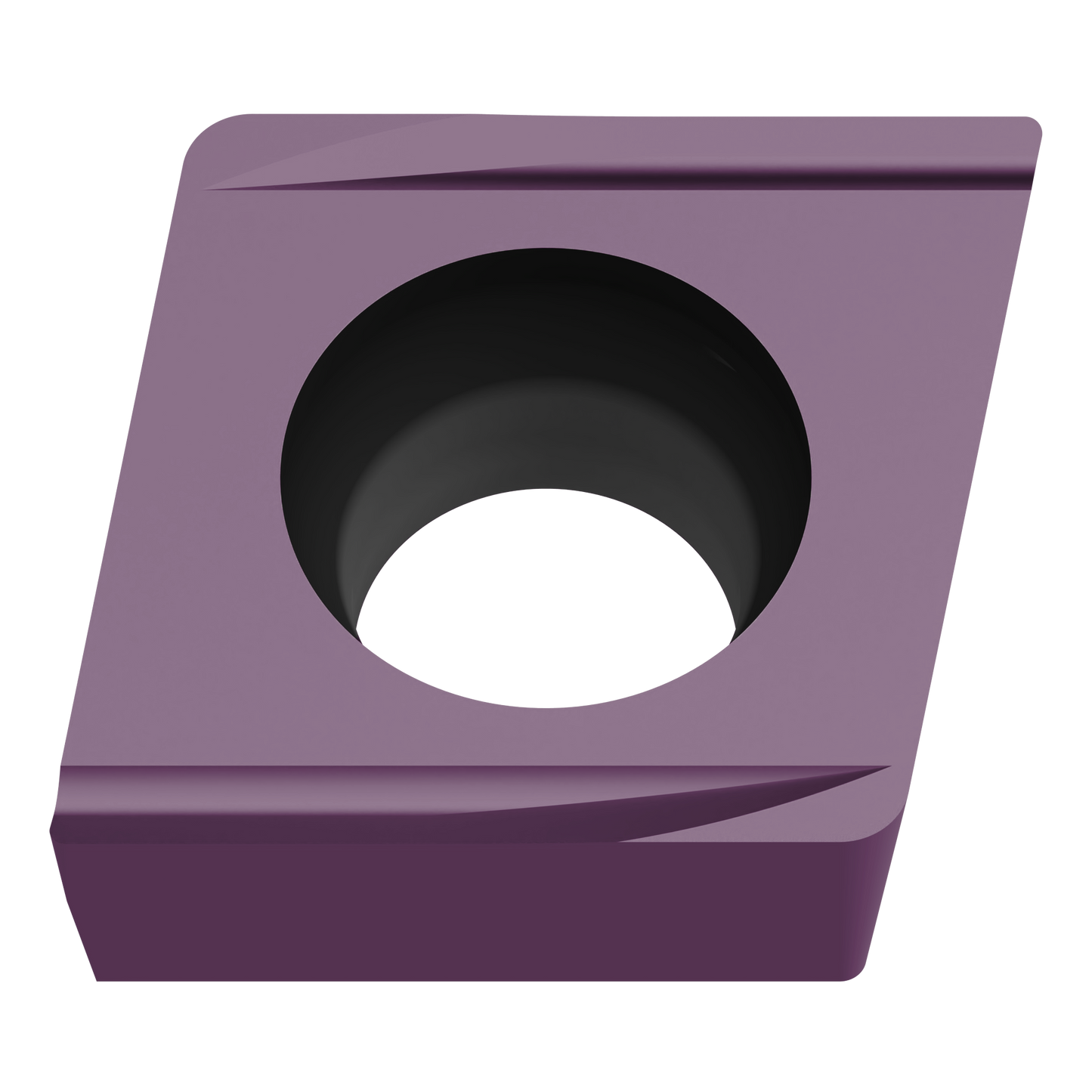

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

266546

ANSI

CCGT32.50.2RSS VP15TF

ISO

CCGT09T301R-SS VP15TF

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)

30

Regular price $17.32 USD
Regular price Sale price $17.32 USD
Sale

EDP

266546

ANSI

CCGT32.50.2RSS VP15TF

ISO

CCGT09T301R-SS VP15TF

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)
View full details
  • Dimensions

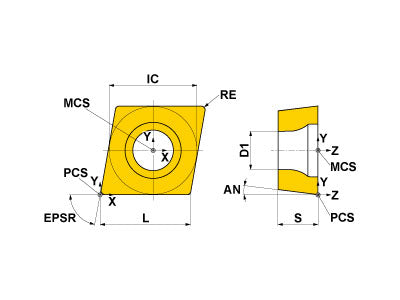

  • Drawings
  • Technical Information
CCGT09T301R-SS VP15TF
Hand
Right

Unit: mm

TC
G
CNC
2
EPSR
80
IC
9.525
S
3.97
AN
7
RE
0.1
LE
5
L
9.67
CCGT09T301R-SS VP15TF

Unit: mm

TC
G
CNC
2
EPSR
80
IC
9.525
S
3.97
AN
7
RE
0.1
LE
5
L
9.67
