diaedge

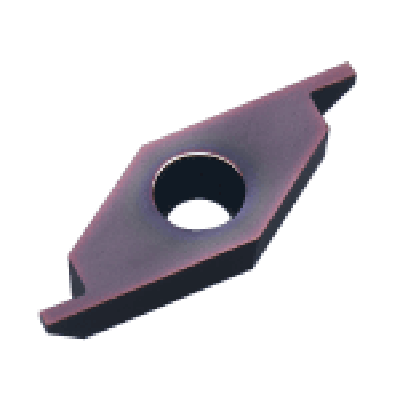

CSVTG09520L VP15KZ
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

267215

ANSI

CSVTG09520L VP15KZ

ISO

CSVTG09520L VP15KZ

P (Steel) M (Stainless) N (Non-Ferrous)

10

Regular price $59.48 USD
Regular price Sale price $59.48 USD
Sale

EDP

267215

ANSI

CSVTG09520L VP15KZ

ISO

CSVTG09520L VP15KZ

P (Steel) M (Stainless) N (Non-Ferrous)
View full details
  • Dimensions

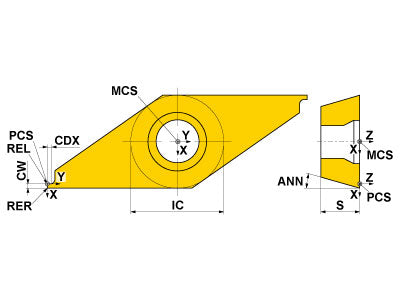

  • Drawings
  • Technical Information
CSVTG09520L VP15KZ
Hand
Left

Unit: mm

CNC
2
IC
6.35
S
2.38
AN
7
REL
0
RER
0
CDX
1.4
CW
0.95
CSVTG09520L VP15KZ

Unit: mm

CNC
2
IC
6.35
S
2.38
AN
7
REL
0
RER
0
CDX
1.4
CW
0.95
