diaedge
CTAT15120V5RR-BX VP15TF
Skip to product information

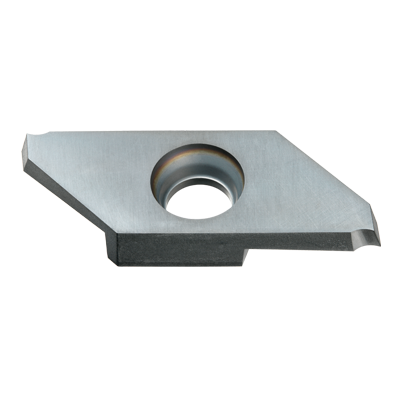

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

267485

ANSI

CTAT15120V5RR-BX VP15TF

ISO

CTAT15120V5RR-BX VP15TF

P (Steel) M (Stainless)

90

Regular price $50.41 USD
Regular price Sale price $50.41 USD
Sale

EDP

267485

ANSI

CTAT15120V5RR-BX VP15TF

ISO

CTAT15120V5RR-BX VP15TF

P (Steel) M (Stainless)
View full details
  • Dimensions

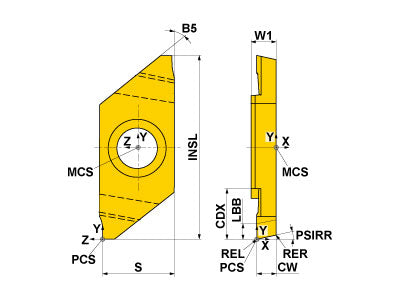

  • Drawings
  • Technical Information
CTAT15120V5RR-BX VP15TF
Hand
Right

Unit: mm

CNC
2
S
8
AN
5
REL
0.05
RER
0.05
W1
2.5
CDX
6.7
CW
1.5
CTAT15120V5RR-BX VP15TF

Unit: mm

CNC
2
S
8
AN
5
REL
0.05
RER
0.05
W1
2.5
CDX
6.7
CW
1.5
