CTBT20145V5LR-B VP15TF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

267602

ANSI

CTBT20145V5LR-B VP15TF

ISO

CTBT20145V5LR-B VP15TF

P (Steel) M (Stainless)

555

Regular price $56.41 USD
Regular price Sale price $56.41 USD
Sale

EDP

267602

ANSI

CTBT20145V5LR-B VP15TF

ISO

CTBT20145V5LR-B VP15TF

P (Steel) M (Stainless)
View full details
  • Dimensions

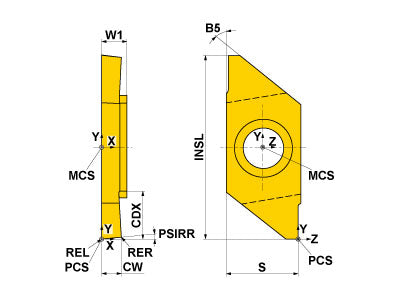

  • Drawings
  • Technical Information
CTBT20145V5LR-B VP15TF
Hand
Right

Unit: mm

CNC
2
S
9.4
REL
0.05
RER
0.05
W1
3.5
CDX
9.2
CW
2
PSIRR
16
CTBT20145V5LR-B VP15TF

Unit: mm

CNC
2
S
9.4
REL
0.05
RER
0.05
W1
3.5
CDX
9.2
CW
2
PSIRR
16
