diaedge
GTBHL1010-30
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

273965

ANSI

GTBHL1010-30

ISO

GTBHL1010-30

P (Steel) M (Stainless) N (Non-Ferrous)

1

Regular price $131.66 USD
Regular price Sale price $131.66 USD
Sale

EDP

273965

ANSI

GTBHL1010-30

ISO

GTBHL1010-30

P (Steel) M (Stainless) N (Non-Ferrous)
View full details
  • Dimensions
  • Features

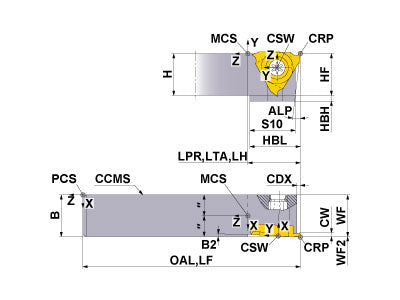

  • Drawings
  • Technical Information
GTBHL1010-30
Coolant
External
Hand
Left

Unit: mm

CW
1.5
CDX
3
H
10
B
10
LF
120
LH
15.3
HF
10
WF2
0
HBH
3
B2
2
OAL
120
GTBHL1010-30

Unit: mm

CW
1.5
CDX
3
H
10
B
10
LF
120
LH
15.3
HF
10
WF2
0
HBH
3
B2
2
OAL
120

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
NS404W 274765 NS404W
inventory mark
$10.76
