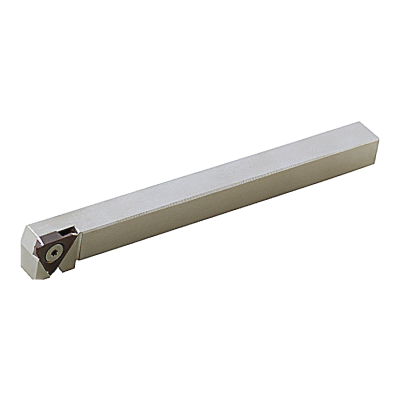

GTBHR1616-30
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

274036

ANSI

GTBHR1616-30

ISO

GTBHR1616-30

P (Steel) M (Stainless) N (Non-Ferrous)

5

Regular price $154.54 USD
Regular price Sale price $154.54 USD
Sale

EDP

274036

ANSI

GTBHR1616-30

ISO

GTBHR1616-30

P (Steel) M (Stainless) N (Non-Ferrous)
View full details
  • Dimensions
  • Features

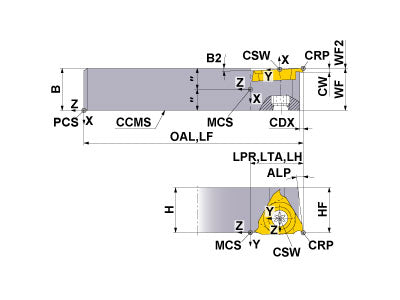

  • Drawings
  • Technical Information
GTBHR1616-30
Coolant
External
Hand
Right

Unit: mm

CW
1.5
CDX
3
H
16
B
16
LF
120
LH
15.3
HF
16
WF2
0
B2
2
OAL
120
GTBHR1616-30

Unit: mm

CW
1.5
CDX
3
H
16
B
16
LF
120
LH
15.3
HF
16
WF2
0
B2
2
OAL
120

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
NS404W 274765 NS404W
inventory mark
$10.76
