diaedge

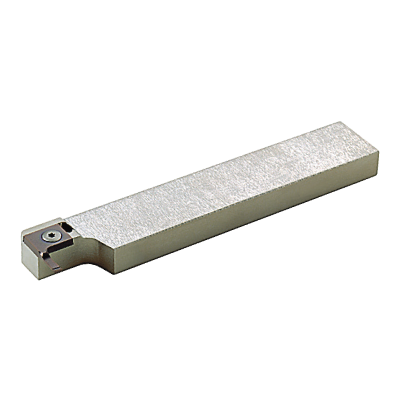

SBAHR1010
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

274087

ANSI

SBAHR1010

ISO

SBAHR1010

P (Steel) M (Stainless) N (Non-Ferrous)

2

Regular price $198.70 USD
Regular price Sale price $198.70 USD
Sale

EDP

274087

ANSI

SBAHR1010

ISO

SBAHR1010

P (Steel) M (Stainless) N (Non-Ferrous)
View full details
  • Dimensions
  • Features

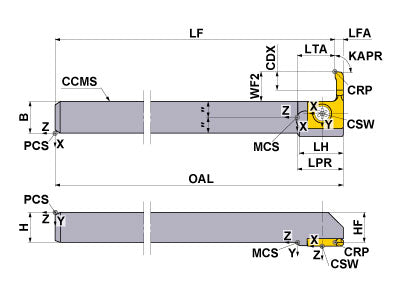

  • Drawings
  • Technical Information
SBAHR1010
Coolant
External
Hand
Right

Unit: mm

H
10
B
10
LF
117.25
LH
15
HF
10
WF2
10
DMIN
3
KAPR
95
SBAHR1010

Unit: mm

H
10
B
10
LF
117.25
LH
15
HF
10
WF2
10
DMIN
3
KAPR
95

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
NS402W 274749 NS402W
inventory mark
$10.76
