diaedge
MS2XLD0050N150
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

288833

ANSI

MS2XL/0.5X15

ISO

MS2XLD0050N150

P (Steel) K (Cast Iron)

4

Regular price $107.32 USD
Regular price Sale price $107.32 USD
Sale

EDP

288833

ANSI

MS2XL/0.5X15

ISO

MS2XLD0050N150

P (Steel) K (Cast Iron)
View full details
  • Dimensions
  • Features

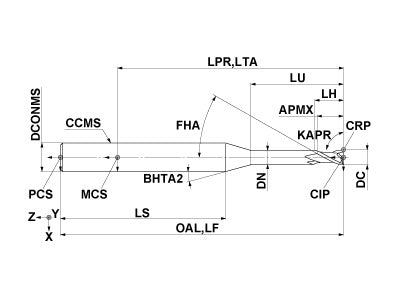

  • Drawings
  • Technical Information
MS2XLD0050N150
Coolant
External
Hand
Right

Unit: mm

DC
0.5
APMX
0.7
LU
15
LH
0.72
OAL
50
DN
0.46
DCONMS
4
BHTA2
12
FHA
30
ZEFP
2
ZEFF
2
MS2XLD0050N150

Unit: mm

DC
0.5
APMX
0.7
LU
15
LH
0.72
OAL
50
DN
0.46
DCONMS
4
BHTA2
12
FHA
30
ZEFP
2
ZEFF
2
