MS2XLD0100N120
Skip to product information

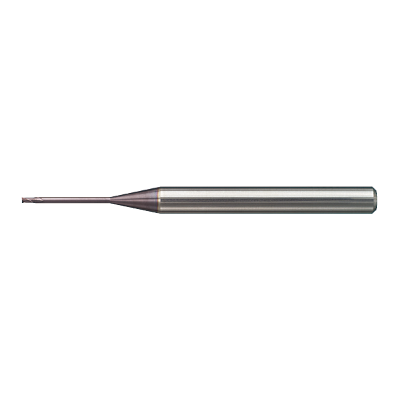

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

289115

ANSI

MS2XL/1X12

ISO

MS2XLD0100N120

P (Steel) K (Cast Iron)

4

Regular price $49.69 USD
Regular price Sale price $49.69 USD
Sale

EDP

289115

ANSI

MS2XL/1X12

ISO

MS2XLD0100N120

P (Steel) K (Cast Iron)
View full details
  • Dimensions
  • Features

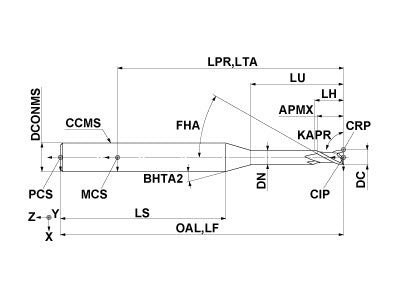

  • Drawings
  • Technical Information
MS2XLD0100N120
Coolant
External
Hand
Right

Unit: mm

DC
1
APMX
1.5
LU
12
LH
1.53
OAL
50
DN
0.94
DCONMS
4
BHTA2
12
FHA
30
ZEFP
2
ZEFF
2
MS2XLD0100N120

Unit: mm

DC
1
APMX
1.5
LU
12
LH
1.53
OAL
50
DN
0.94
DCONMS
4
BHTA2
12
FHA
30
ZEFP
2
ZEFF
2
