diaedge

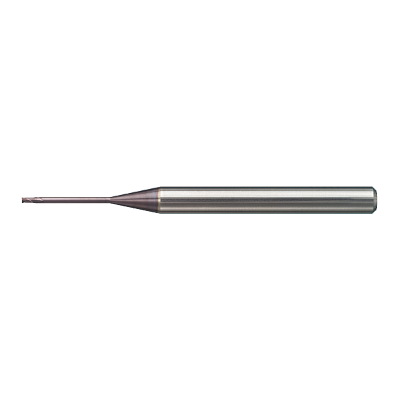

MS2XLD0300N200
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

289596

ANSI

MS2XL/3X20

ISO

MS2XLD0300N200

P (Steel) K (Cast Iron)

3

Regular price $69.56 USD
Regular price Sale price $69.56 USD
Sale

EDP

289596

ANSI

MS2XL/3X20

ISO

MS2XLD0300N200

P (Steel) K (Cast Iron)
View full details
  • Dimensions
  • Features

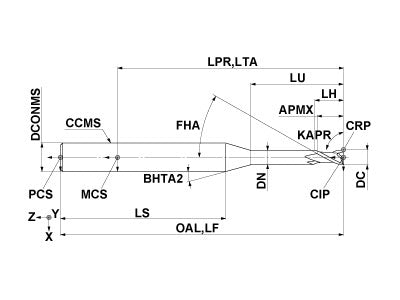

  • Drawings
  • Technical Information
MS2XLD0300N200
Coolant
External
Hand
Right

Unit: mm

DC
3
APMX
4.5
LU
20
LH
4.6
OAL
60
DN
2.8
DCONMS
6
BHTA2
12
FHA
30
ZEFP
2
ZEFF
2
MS2XLD0300N200

Unit: mm

DC
3
APMX
4.5
LU
20
LH
4.6
OAL
60
DN
2.8
DCONMS
6
BHTA2
12
FHA
30
ZEFP
2
ZEFF
2
