diaedge
MS2XLD0300N400
Skip to product information

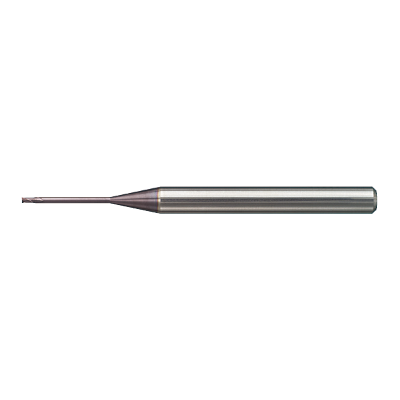

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

289625

ANSI

MS2XL/3X40

ISO

MS2XLD0300N400

P (Steel) K (Cast Iron)

3

Regular price $92.30 USD
Regular price Sale price $92.30 USD
Sale

EDP

289625

ANSI

MS2XL/3X40

ISO

MS2XLD0300N400

P (Steel) K (Cast Iron)
View full details
  • Dimensions
  • Features

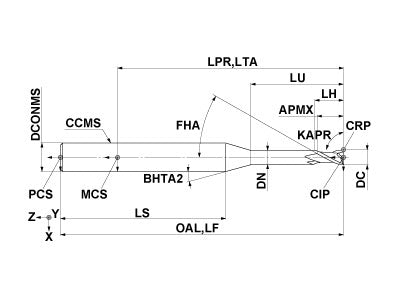

  • Drawings
  • Technical Information
MS2XLD0300N400
Coolant
External
Hand
Right

Unit: mm

DC
3
APMX
4.5
LU
40
LH
4.6
OAL
90
DN
2.8
DCONMS
6
BHTA2
12
FHA
30
ZEFP
2
ZEFF
2
