MS2XLD0500N250
Skip to product information

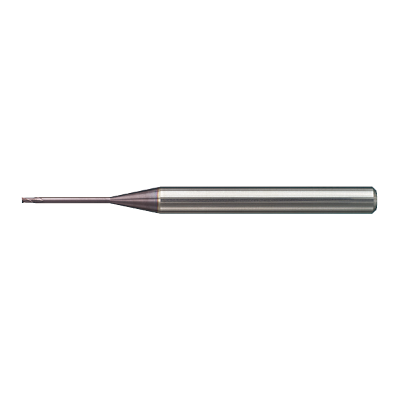

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

289756

ANSI

MS2XL/5X25

ISO

MS2XLD0500N250

P (Steel) K (Cast Iron)

9

Regular price $104.34 USD
Regular price Sale price $104.34 USD
Sale

EDP

289756

ANSI

MS2XL/5X25

ISO

MS2XLD0500N250

P (Steel) K (Cast Iron)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
MS2XLD0500N250
Coolant
External
Hand
Right

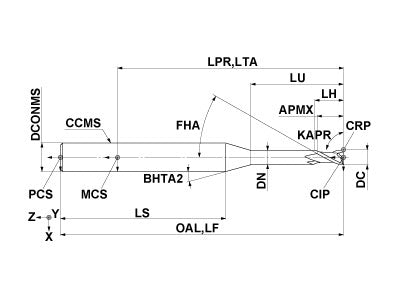

Unit: mm

DC
5
APMX
7.5
LU
25
LH
7.6
OAL
70
DN
4.8
DCONMS
6
BHTA2
12
FHA
30
ZEFP
2
ZEFF
2
MS2XLD0500N250

Unit: mm

DC
5
APMX
7.5
LU
25
LH
7.6
OAL
70
DN
4.8
DCONMS
6
BHTA2
12
FHA
30
ZEFP
2
ZEFF
2
