APX3000UR081SA08SA
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

291602

ANSI

APX3000UR081SA08SA

ISO

APX3000UR081SA08SA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

128

Regular price $219.61 USD
Regular price Sale price $219.61 USD
Sale

EDP

291602

ANSI

APX3000UR081SA08SA

ISO

APX3000UR081SA08SA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

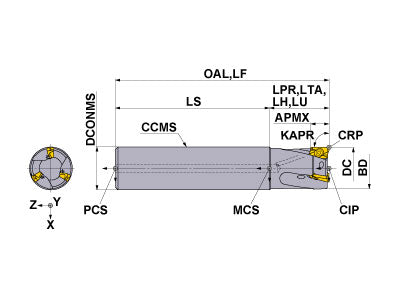

  • Drawings
  • Technical Information
APX3000UR081SA08SA
Coolant
Internal
Hand
Right

Unit: inch

DC
0.5
LF
3.25
APMX
0.394
LH
1.12
OAL
3.25
DCONMS
0.5
NOF
1
ZEFF
1
ZEFP
1
KAPR
90
RMPX
6
GAMF
15
GAMP
9
WT
0.1
APX3000UR081SA08SA

Unit: inch

DC
0.5
LF
3.25
APMX
0.394
LH
1.12
OAL
3.25
DCONMS
0.5
NOF
1
ZEFF
1
ZEFP
1
KAPR
90
RMPX
6
GAMF
15
GAMP
9
WT
0.1

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
MK1KS 291805 MK1KS
inventory mark
$4.22
TPS25 291581 TPS25
inventory mark
$2.96
TIP07F 291573 TIP07F
inventory mark
$5.54
