diaedge

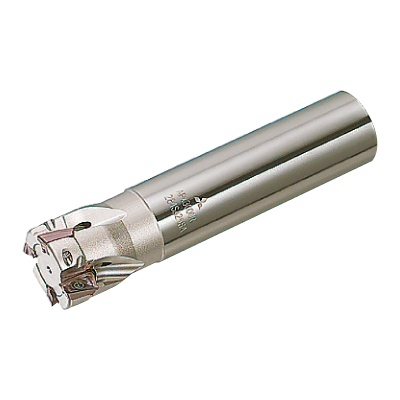

APX3000UR102SA10SA
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

291611

ANSI

APX3000UR102SA10SA

ISO

APX3000UR102SA10SA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

225

Regular price $275.91 USD
Regular price Sale price $275.91 USD
Sale

EDP

291611

ANSI

APX3000UR102SA10SA

ISO

APX3000UR102SA10SA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

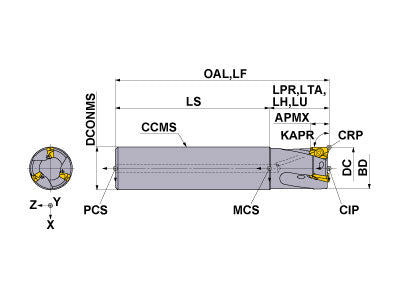

  • Drawings
  • Technical Information
APX3000UR102SA10SA
Coolant
Internal
Hand
Right

Unit: inch

DC
0.625
LF
3.625
APMX
0.394
LH
1.19
OAL
3.625
DCONMS
0.625
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
11.5
GAMF
22
GAMP
12
WT
0.3
APX3000UR102SA10SA

Unit: inch

DC
0.625
LF
3.625
APMX
0.394
LH
1.19
OAL
3.625
DCONMS
0.625
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
11.5
GAMF
22
GAMP
12
WT
0.3

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
MK1KS 291805 MK1KS
inventory mark
$4.22
TPS25 291581 TPS25
inventory mark
$2.96
TIP07F 291573 TIP07F
inventory mark
$5.54
