APX3000UR163SA16SA
Skip to product information

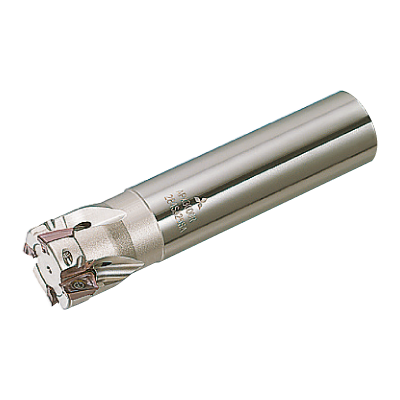

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

291645

ANSI

APX3000UR163SA16SA

ISO

APX3000UR163SA16SA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

96

Regular price $330.97 USD
Regular price Sale price $330.97 USD
Sale

EDP

291645

ANSI

APX3000UR163SA16SA

ISO

APX3000UR163SA16SA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

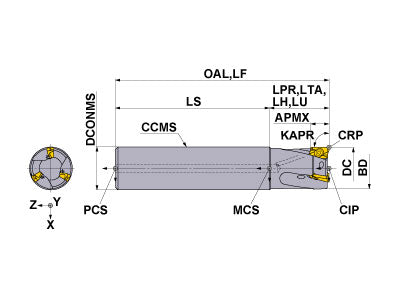

  • Drawings
  • Technical Information
APX3000UR163SA16SA
Coolant
Internal
Hand
Right

Unit: inch

DC
1
LF
4.75
APMX
0.394
LH
1.57
OAL
4.75
DCONMS
1
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
4.5
GAMF
24
GAMP
18
WT
0.9
APX3000UR163SA16SA

Unit: inch

DC
1
LF
4.75
APMX
0.394
LH
1.57
OAL
4.75
DCONMS
1
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
4.5
GAMF
24
GAMP
18
WT
0.9

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
MK1KS 291805 MK1KS
inventory mark
$3.91
TPS25-1 291590 TPS25-1
inventory mark
$2.74
TIP07F 291573 TIP07F
inventory mark
$5.13
