diaedge
APX3000UR205SA20SA
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

291670

ANSI

APX3000UR205SA20SA

ISO

APX3000UR205SA20SA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing

45

Regular price $368.95 USD
Regular price Sale price $368.95 USD
Sale

EDP

291670

ANSI

APX3000UR205SA20SA

ISO

APX3000UR205SA20SA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing
View full details
  • Dimensions
  • Features

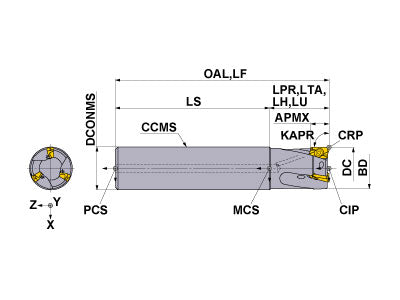

  • Drawings
  • Technical Information
APX3000UR205SA20SA
Coolant
Internal
Hand
Right

Unit: inch

DC
1.25
LF
5.125
APMX
0.394
LH
1.97
OAL
5.125
DCONMS
1.25
NOF
5
ZEFF
5
ZEFP
5
KAPR
90
RMPX
3.1
GAMF
25
GAMP
20
WT
1.5
APX3000UR205SA20SA

Unit: inch

DC
1.25
LF
5.125
APMX
0.394
LH
1.97
OAL
5.125
DCONMS
1.25
NOF
5
ZEFF
5
ZEFP
5
KAPR
90
RMPX
3.1
GAMF
25
GAMP
20
WT
1.5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP07F 291573 TIP07F
inventory mark
$5.13
MK1KS 291805 MK1KS
inventory mark
$3.91
TPS25-1 291590 TPS25-1
inventory mark
$2.74
