diaedge
APX3000UR203SA20LA
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

291725

ANSI

APX3000UR203SA20LA

ISO

APX3000UR203SA20LA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

27

Regular price $387.57 USD
Regular price Sale price $387.57 USD
Sale

EDP

291725

ANSI

APX3000UR203SA20LA

ISO

APX3000UR203SA20LA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

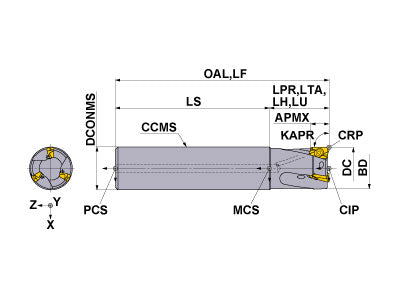

  • Drawings
  • Technical Information
APX3000UR203SA20LA
Coolant
Internal
Hand
Right

Unit: inch

DC
1.25
LF
9
APMX
0.394
LH
1.97
OAL
9
DCONMS
1.25
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
3.1
GAMF
25
GAMP
20
WT
2.8
APX3000UR203SA20LA

Unit: inch

DC
1.25
LF
9
APMX
0.394
LH
1.97
OAL
9
DCONMS
1.25
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
3.1
GAMF
25
GAMP
20
WT
2.8

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP07F 291573 TIP07F
inventory mark
$5.54
MK1KS 291805 MK1KS
inventory mark
$4.22
TPS25-1 291590 TPS25-1
inventory mark
$2.96
