APX3000UR243SA20LA
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

291741

ANSI

APX3000UR243SA20LA

ISO

APX3000UR243SA20LA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing

5

Regular price $416.49 USD
Regular price Sale price $416.49 USD
Sale

EDP

291741

ANSI

APX3000UR243SA20LA

ISO

APX3000UR243SA20LA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing
View full details
  • Dimensions
  • Features

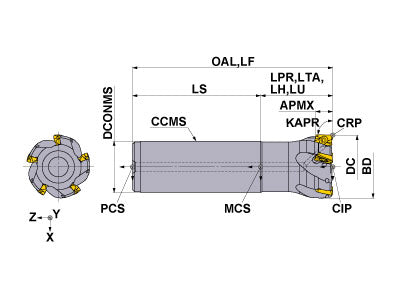

  • Drawings
  • Technical Information
APX3000UR243SA20LA
Coolant
Internal
Hand
Right

Unit: inch

DC
1.5
LF
9
APMX
0.394
LH
1.97
OAL
9
DCONMS
1.25
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
2.3
GAMF
26
GAMP
22
WT
3.0
APX3000UR243SA20LA

Unit: inch

DC
1.5
LF
9
APMX
0.394
LH
1.97
OAL
9
DCONMS
1.25
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
2.3
GAMF
26
GAMP
22
WT
3.0

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
MK1KS 291805 MK1KS
inventory mark
$3.91
TPS25-1 291590 TPS25-1
inventory mark
$2.74
TIP07F 291573 TIP07F
inventory mark
$5.13
