diaedge
APX3000R0205A
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

291768

ANSI

APX3000R0205A

ISO

APX3000R0205A

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

159

Regular price $640.27 USD
Regular price Sale price $640.27 USD
Sale

EDP

291768

ANSI

APX3000R0205A

ISO

APX3000R0205A

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

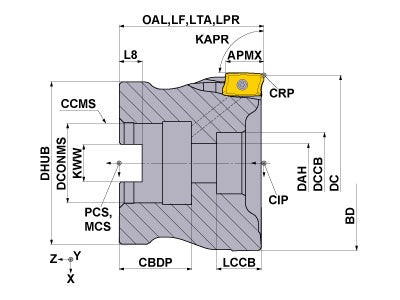

  • Drawings
  • Technical Information
APX3000R0205A
Coolant
Internal
Hand
Right

Unit: inch

DC
2
LF
1.575
APMX
0.394
OAL
1.575
DCONMS
0.75
NOF
5
ZEFF
5
ZEFP
5
KAPR
90
RMPX
1.6
GAMF
26
GAMP
22
WT
0.8
APX3000R0205A

Unit: inch

DC
2
LF
1.575
APMX
0.394
OAL
1.575
DCONMS
0.75
NOF
5
ZEFF
5
ZEFP
5
KAPR
90
RMPX
1.6
GAMF
26
GAMP
22
WT
0.8

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
HSCU37513H 242835 HSCU37513H
inventory mark
$19.06
MK1KS 291805 MK1KS
inventory mark
$3.91
TPS25-1 291590 TPS25-1
inventory mark
$2.74
TIP07F 291573 TIP07F
inventory mark
$5.13
