diaedge

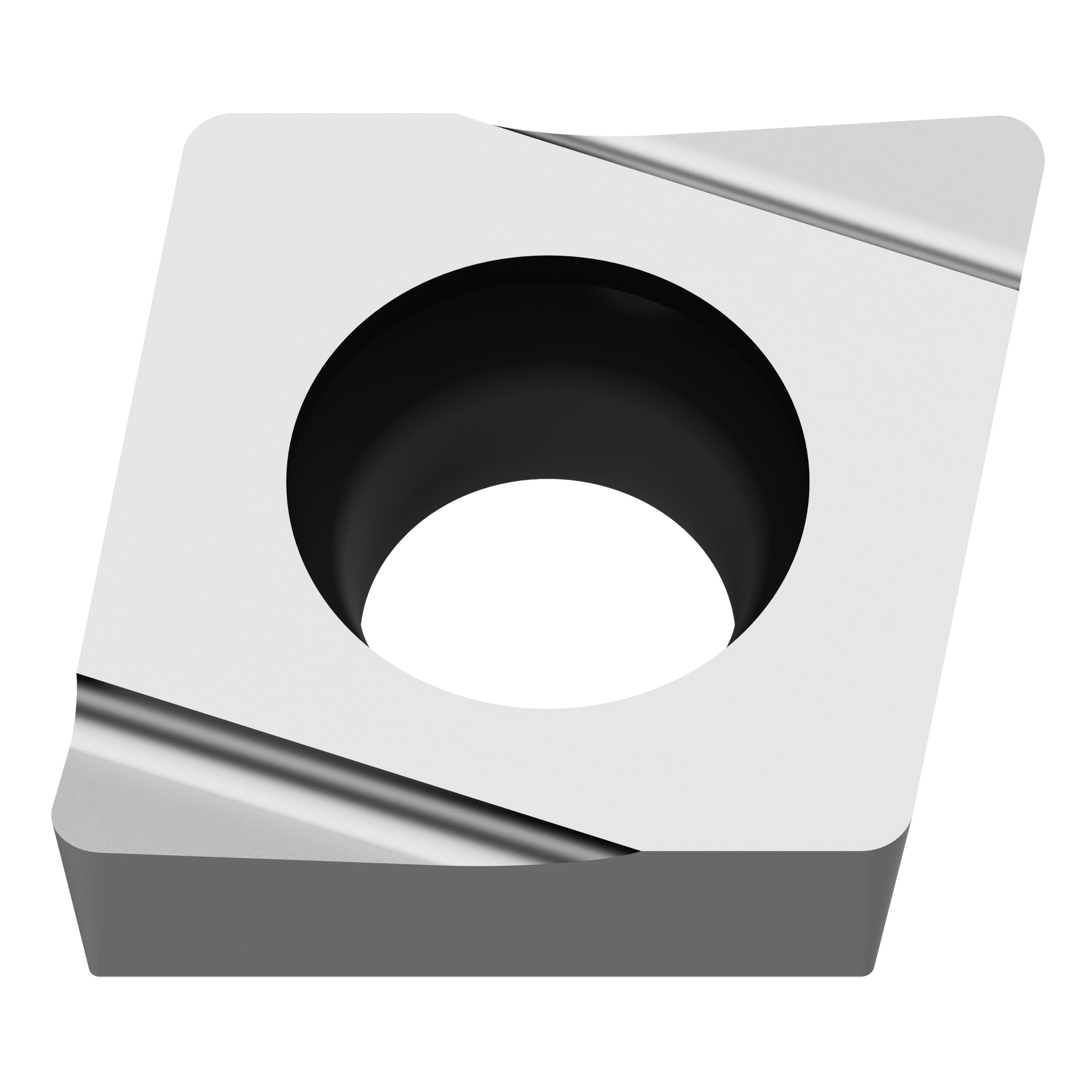

CCGH060204R-F HTI10
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

293376

ANSI

CCGH21.51RF HTI10

ISO

CCGH060204R-F HTI10

K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

20

Regular price $14.52 USD
Regular price Sale price $14.52 USD
Sale

EDP

293376

ANSI

CCGH21.51RF HTI10

ISO

CCGH060204R-F HTI10

K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions

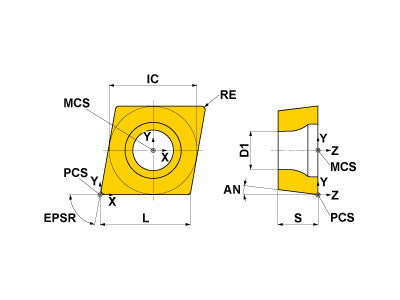

  • Drawings
  • Technical Information
CCGH060204R-F HTI10
Hand
Right

Unit: mm

TC
G
CNC
2
EPSR
80
IC
6.35
S
2.38
AN
7
RE
0.4
LE
4.4
L
6.45
CCGH060204R-F HTI10

Unit: mm

TC
G
CNC
2
EPSR
80
IC
6.35
S
2.38
AN
7
RE
0.4
LE
4.4
L
6.45
