diaedge
CPMH090304R-F HTI10
Skip to product information

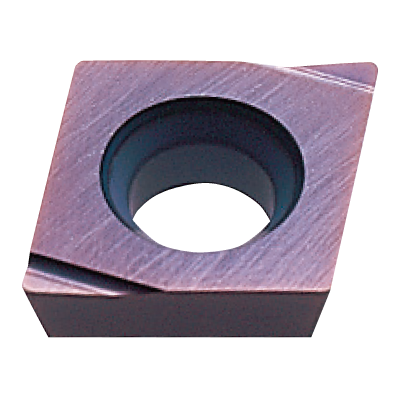

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

294045

ANSI

CPMH321RF HTI10

ISO

CPMH090304R-F HTI10

N (Non-Ferrous)

Out of stock

Regular price $20.79 USD
Regular price Sale price $20.79 USD
Sale

EDP

294045

ANSI

CPMH321RF HTI10

ISO

CPMH090304R-F HTI10

N (Non-Ferrous)
View full details
  • Dimensions

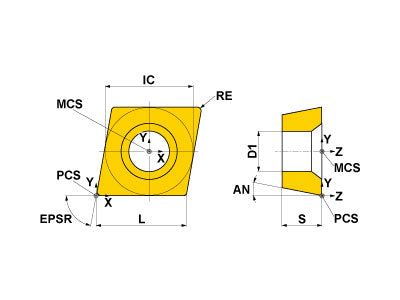

  • Drawings
  • Technical Information
CPMH090304R-F HTI10
Hand
Right

Unit: mm

TC
M
CNC
2
EPSR
80
IC
9.525
S
3.18
AN
11
RE
0.4
L
9.67
CPMH090304R-F HTI10

Unit: mm

TC
M
CNC
2
EPSR
80
IC
9.525
S
3.18
AN
11
RE
0.4
L
9.67
