diaedge

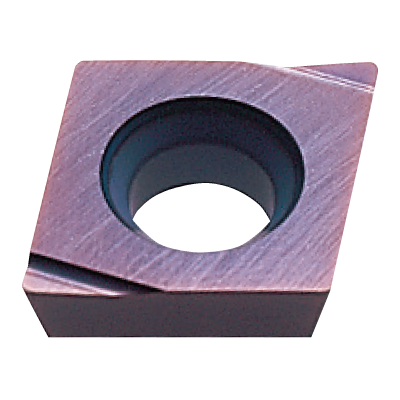

CPMH090304R-F VP15TF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

294061

ANSI

CPMH321RF VP15TF

ISO

CPMH090304R-F VP15TF

P (Steel) M (Stainless)

170

Regular price $19.25 USD
Regular price Sale price $19.25 USD
Sale

EDP

294061

ANSI

CPMH321RF VP15TF

ISO

CPMH090304R-F VP15TF

P (Steel) M (Stainless)
View full details
  • Dimensions

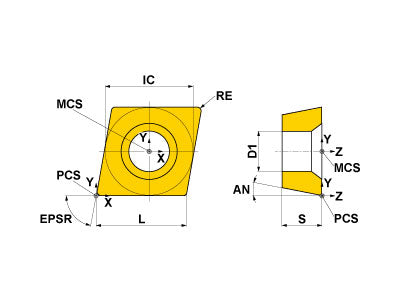

  • Drawings
  • Technical Information
CPMH090304R-F VP15TF
Hand
Right

Unit: mm

TC
M
CNC
2
EPSR
80
IC
9.525
S
3.18
AN
11
RE
0.4
L
9.67
CPMH090304R-F VP15TF

Unit: mm

TC
M
CNC
2
EPSR
80
IC
9.525
S
3.18
AN
11
RE
0.4
L
9.67
