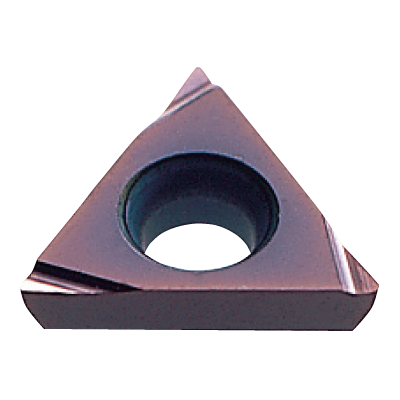

TPGH080202L-FS HTI10
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

294758

ANSI

TPGH1.51.50.5LFS HTI10

ISO

TPGH080202L-FS HTI10

K (Cast Iron) N (Non-Ferrous)

10

Regular price $13.52 USD
Regular price Sale price $13.52 USD
Sale

EDP

294758

ANSI

TPGH1.51.50.5LFS HTI10

ISO

TPGH080202L-FS HTI10

K (Cast Iron) N (Non-Ferrous)
View full details
  • Dimensions

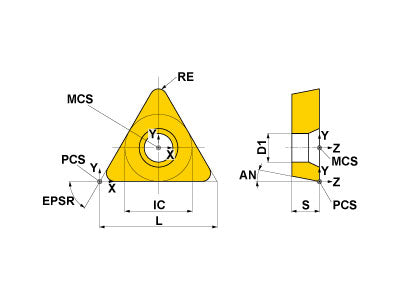

  • Drawings
  • Technical Information
TPGH080202L-FS HTI10
Hand
Left

Unit: mm

TC
G
CNC
3
EPSR
60
IC
4.76
S
2.38
AN
11
RE
0.2
LE
2.7
L
8.24
TPGH080202L-FS HTI10

Unit: mm

TC
G
CNC
3
EPSR
60
IC
4.76
S
2.38
AN
11
RE
0.2
LE
2.7
L
8.24
