TPGH090204R-FS HTI10
Skip to product information

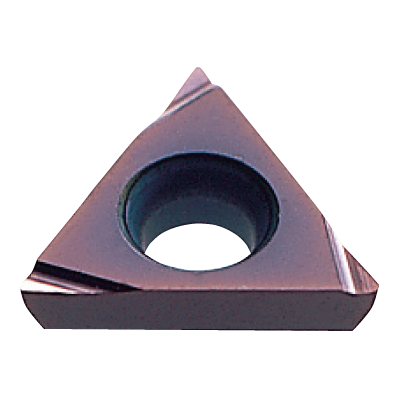

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

294951

ANSI

TPGH1.81.51RFS HTI10

ISO

TPGH090204R-FS HTI10

K (Cast Iron) N (Non-Ferrous)

10

Regular price $14.10 USD
Regular price Sale price $14.10 USD
Sale

EDP

294951

ANSI

TPGH1.81.51RFS HTI10

ISO

TPGH090204R-FS HTI10

K (Cast Iron) N (Non-Ferrous)
View full details
  • Dimensions

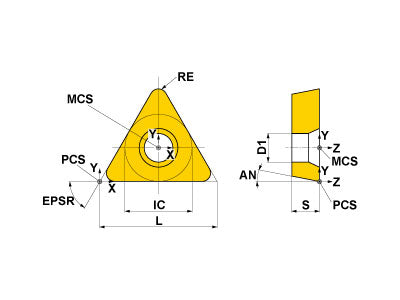

  • Drawings
  • Technical Information
TPGH090204R-FS HTI10
Hand
Right

Unit: mm

TC
G
CNC
3
EPSR
60
IC
5.56
S
2.38
AN
11
RE
0.4
LE
3.2
L
9.64
TPGH090204R-FS HTI10

Unit: mm

TC
G
CNC
3
EPSR
60
IC
5.56
S
2.38
AN
11
RE
0.4
LE
3.2
L
9.64
