diaedge
NP-CPMH090304 MD220
Skip to product information

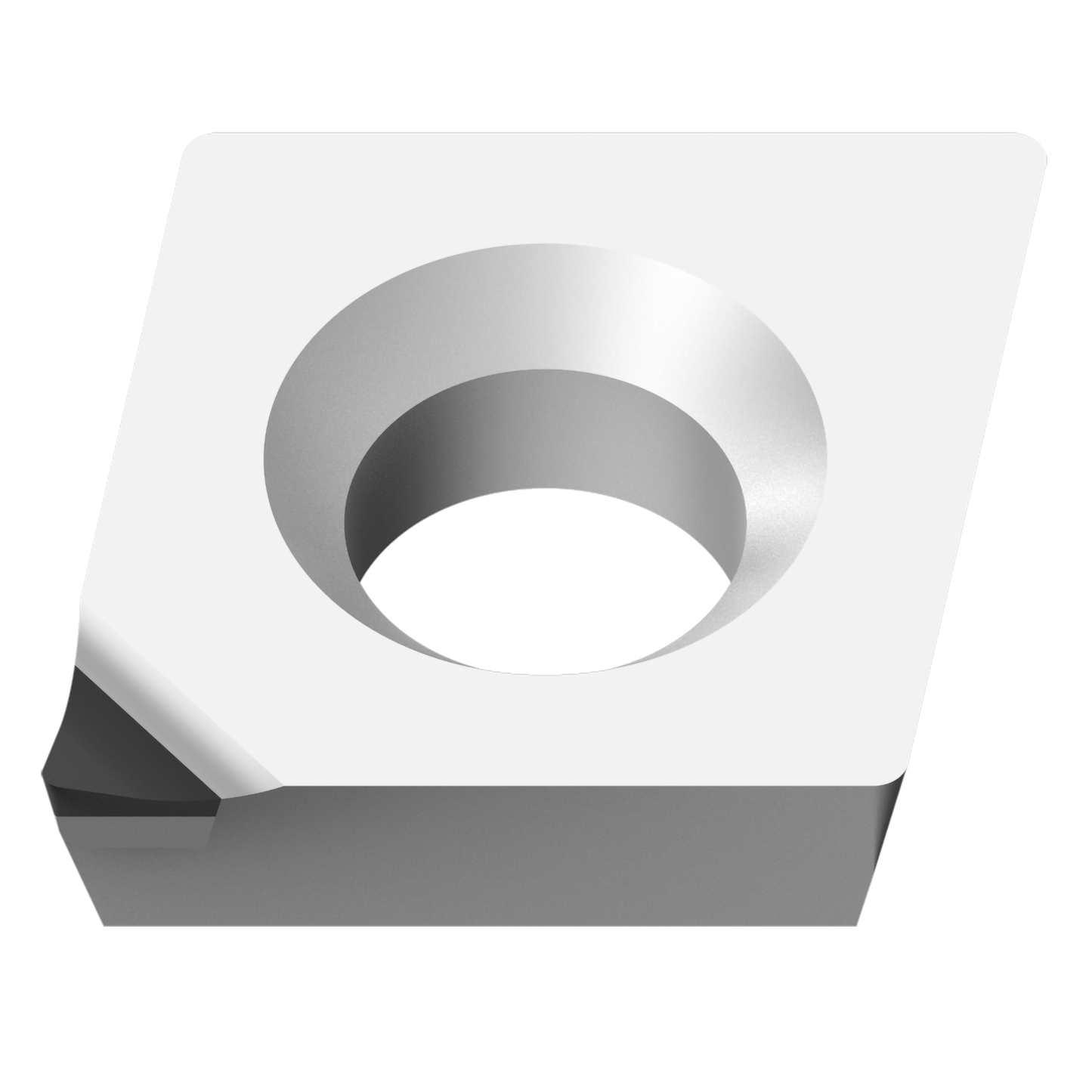

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

296358

ANSI

NP-CPMH321 MD220

ISO

NP-CPMH090304 MD220

N (Non-Ferrous)

8

Regular price $73.92 USD
Regular price Sale price $73.92 USD
Sale

EDP

296358

ANSI

NP-CPMH321 MD220

ISO

NP-CPMH090304 MD220

N (Non-Ferrous)
View full details
  • Dimensions

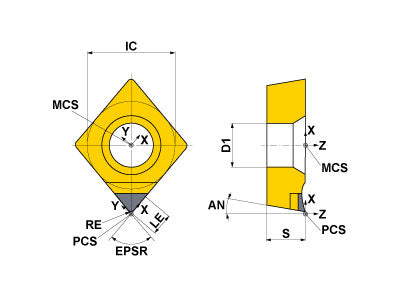

  • Drawings
  • Technical Information
NP-CPMH090304 MD220
Hand
Neutral

Unit: mm

TC
M
CNC
1
EPSR
80
IC
9.525
S
3.18
AN
11
RE
0.4
LE
1.8
L
9.67
NP-CPMH090304 MD220

Unit: mm

TC
M
CNC
1
EPSR
80
IC
9.525
S
3.18
AN
11
RE
0.4
LE
1.8
L
9.67
