NP-TPMH090204R-F MD220
Skip to product information

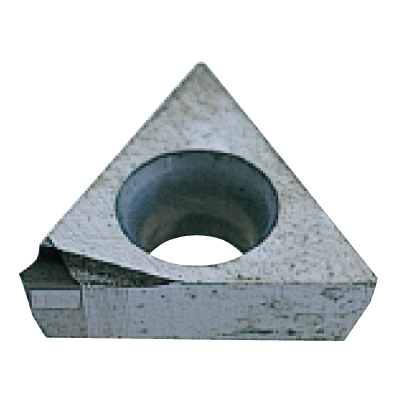

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

296622

ANSI

NP-TPMH1.81.51RF MD220

ISO

NP-TPMH090204R-F MD220

N (Non-Ferrous)

8

Regular price $56.16 USD
Regular price Sale price $56.16 USD
Sale

EDP

296622

ANSI

NP-TPMH1.81.51RF MD220

ISO

NP-TPMH090204R-F MD220

N (Non-Ferrous)
View full details
  • Dimensions

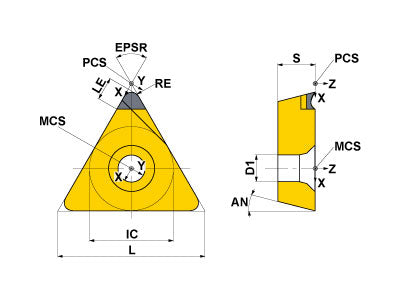

  • Drawings
  • Technical Information
NP-TPMH090204R-F MD220
Hand
Right

Unit: mm

TC
M
CNC
1
EPSR
60
IC
5.56
S
2.38
AN
11
RE
0.4
LE
1.6
L
9.64
NP-TPMH090204R-F MD220

Unit: mm

TC
M
CNC
1
EPSR
60
IC
5.56
S
2.38
AN
11
RE
0.4
LE
1.6
L
9.64
