diaedge
CB03RS TF15
Skip to product information

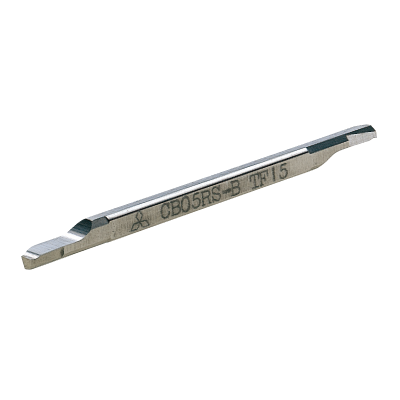

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

296850

ANSI

CB03RS TF15

ISO

CB03RS TF15

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous)

5

Regular price $46.68 USD
Regular price Sale price $46.68 USD
Sale

EDP

296850

ANSI

CB03RS TF15

ISO

CB03RS TF15

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous)
View full details
  • Dimensions
  • Features

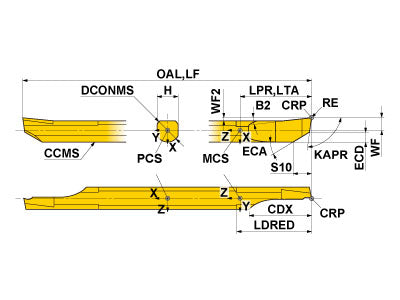

  • Drawings
  • Technical Information
CB03RS TF15
Coolant
External
Hand
Right

Unit: mm

RE
0.05
CDX
7.5
DMIN
3.2
DCONMS
3
LF
50
LDRED
9
WF
1.5
WF2
0.35
H
2.7
CB03RS TF15

Unit: mm

RE
0.05
CDX
7.5
DMIN
3.2
DCONMS
3
LF
50
LDRED
9
WF
1.5
WF2
0.35
H
2.7
