diaedge
MSE0050SB VP15TF
Skip to product information

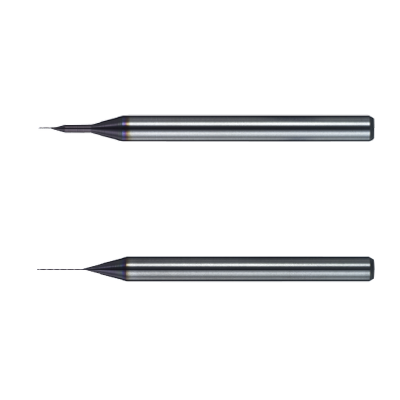

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

310341

ANSI

MSE0050SB VP15TF

ISO

MSE0050SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

31

Regular price $40.20 USD
Regular price Sale price $40.20 USD
Sale

EDP

310341

ANSI

MSE0050SB VP15TF

ISO

MSE0050SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

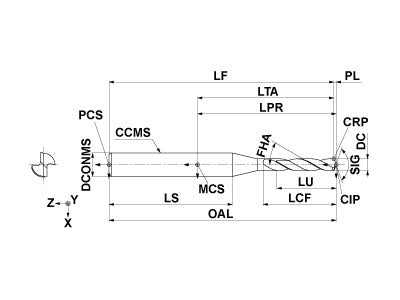

  • Drawings
  • Technical Information
MSE0050SB VP15TF
Coolant
External
Hand
Right

Unit: mm

DC
0.5
LU
1.62
LCF
7.12
OAL
38.12
DCONMS
3
PL
0.12
SIG
130
FHA
30
DC Max
0
DC Min
-0.009
TCDCON
h6
ZEFF
2
MSE0050SB VP15TF

Unit: mm

DC
0.5
LU
1.62
LCF
7.12
OAL
38.12
DCONMS
3
PL
0.12
SIG
130
FHA
30
DC Max
0
DC Min
-0.009
TCDCON
h6
ZEFF
2
