diaedge
MSE0035SB VP15TF
Skip to product information

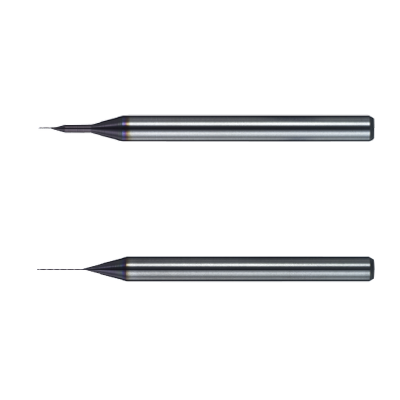

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

310471

ANSI

MSE0035SB VP15TF

ISO

MSE0035SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

19

Regular price $44.26 USD
Regular price Sale price $44.26 USD
Sale

EDP

310471

ANSI

MSE0035SB VP15TF

ISO

MSE0035SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

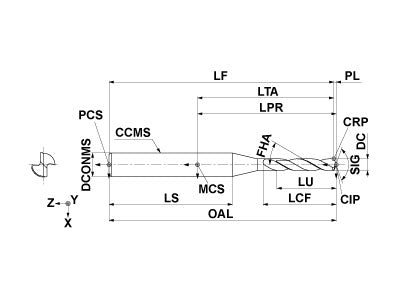

  • Drawings
  • Technical Information
MSE0035SB VP15TF
Coolant
External
Hand
Right

Unit: mm

DC
0.35
LU
1.13
LCF
6.08
OAL
38.08
DCONMS
3
PL
0.08
SIG
130
FHA
30
DC Max
0
DC Min
-0.009
TCDCON
h6
ZEFF
2
MSE0035SB VP15TF

Unit: mm

DC
0.35
LU
1.13
LCF
6.08
OAL
38.08
DCONMS
3
PL
0.08
SIG
130
FHA
30
DC Max
0
DC Min
-0.009
TCDCON
h6
ZEFF
2
