diaedge
TPGH160304L-FS HTI10
Skip to product information

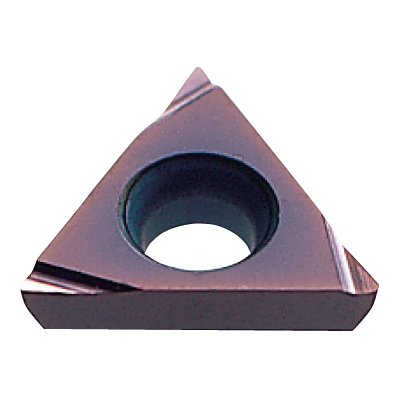

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

314860

ANSI

TPGH321LFS HTI10

ISO

TPGH160304L-FS HTI10

K (Cast Iron) N (Non-Ferrous)

20

Regular price $26.91 USD
Regular price Sale price $26.91 USD
Sale

EDP

314860

ANSI

TPGH321LFS HTI10

ISO

TPGH160304L-FS HTI10

K (Cast Iron) N (Non-Ferrous)
View full details
  • Dimensions

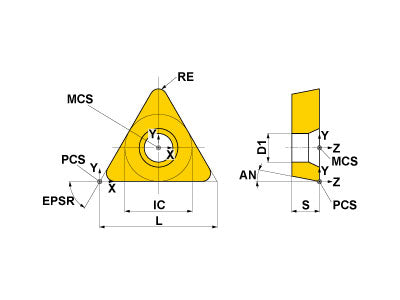

  • Drawings
  • Technical Information
TPGH160304L-FS HTI10
Hand
Left

Unit: mm

TC
G
CNC
3
EPSR
60
IC
9.525
S
3.18
AN
11
RE
0.4
LE
6.1
L
16.5
TPGH160304L-FS HTI10

Unit: mm

TC
G
CNC
3
EPSR
60
IC
9.525
S
3.18
AN
11
RE
0.4
LE
6.1
L
16.5
