EDP
316769
ANSI
MSE0040SB VP15TF
ISO
MSE0040SB VP15TF
Stock
157
Price
Regular price
$47.80 USD
Regular price
Sale price
$47.80 USD
Unit price
/
per
EDP
316769
ANSI
MSE0040SB VP15TF
ISO
MSE0040SB VP15TF
Change the number in sums of 1s.
- Dimensions
- Features

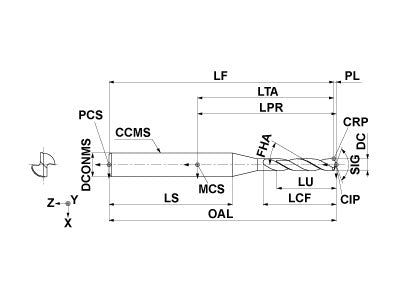

- Drawings
- Technical Information
Coolant
External
Hand
Right
Unit: mm
DC
0.4
LU
1.29
LCF
7.09
OAL
38.09
DCONMS
3
PL
0.09
SIG
130
FHA
30
DC Max
0
DC Min
-0.009
TCDCON
h6
ZEFF
2
Unit: mm
DC
0.4
LU
1.29
LCF
7.09
OAL
38.09
DCONMS
3
PL
0.09
SIG
130
FHA
30
DC Max
0
DC Min
-0.009
TCDCON
h6
ZEFF
2
Wide flute for preventing chip jamming.
Stable, small diameter machining.
2D Model (DXF)
3D Model (STP)
