diaedge
MSE0041SB VP15TF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

327450

ANSI

MSE0041SB VP15TF

ISO

MSE0041SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

70

Regular price $47.80 USD
Regular price Sale price $47.80 USD
Sale

EDP

327450

ANSI

MSE0041SB VP15TF

ISO

MSE0041SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

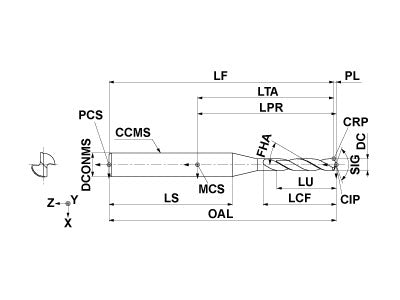

  • Drawings
  • Technical Information
MSE0041SB VP15TF
Coolant
External
Hand
Right

Unit: mm

DC
0.41
LU
1.33
LCF
7.1
OAL
38.1
DCONMS
3
PL
0.1
SIG
130
FHA
30
DC Max
0
DC Min
-0.009
TCDCON
h6
ZEFF
2
MSE0041SB VP15TF

Unit: mm

DC
0.41
LU
1.33
LCF
7.1
OAL
38.1
DCONMS
3
PL
0.1
SIG
130
FHA
30
DC Max
0
DC Min
-0.009
TCDCON
h6
ZEFF
2
