diaedge
AJXU06R102SA10L
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

330202

ANSI

AJXU06R102SA10L

ISO

AJXU06R102SA10L

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

77

Regular price $293.17 USD
Regular price Sale price $293.17 USD
Sale

EDP

330202

ANSI

AJXU06R102SA10L

ISO

AJXU06R102SA10L

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

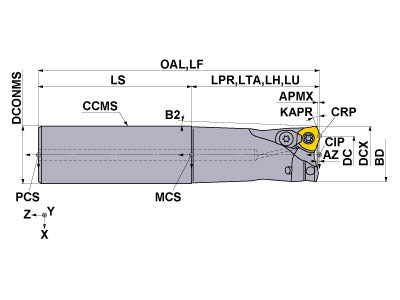

  • Drawings
  • Technical Information
AJXU06R102SA10L
Coolant
Internal
Hand
Right

Unit: inch

DC
0.346
DCX
0.625
LF
5.75
APMX
0.039
LH
2.75
OAL
5.75
DCONMS
0.625
NOF
2
ZEFF
2
ZEFP
2
RMPX
3
GAMF
-5
GAMP
4
AJXU06R102SA10L

Unit: inch

DC
0.346
DCX
0.625
LF
5.75
APMX
0.039
LH
2.75
OAL
5.75
DCONMS
0.625
NOF
2
ZEFF
2
ZEFP
2
RMPX
3
GAMF
-5
GAMP
4

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS25 108734 TS25
inventory mark
$2.74
