diaedge
MS2ESD1000L35S07
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

330704

ANSI

MS2ES/10X35X7

ISO

MS2ESD1000L35S07

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

1

Regular price $100.34 USD
Regular price Sale price $100.34 USD
Sale

EDP

330704

ANSI

MS2ES/10X35X7

ISO

MS2ESD1000L35S07

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
MS2ESD1000L35S07
Coolant
External
Hand
Right

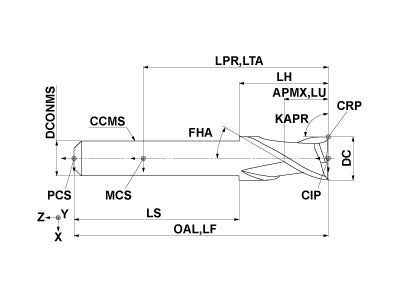

Unit: mm

DC
10
APMX
6
LU
6
LH
7.5
OAL
35
DCONMS
7
FHA
30
ZEFP
2
ZEFF
2
MS2ESD1000L35S07

Unit: mm

DC
10
APMX
6
LU
6
LH
7.5
OAL
35
DCONMS
7
FHA
30
ZEFP
2
ZEFF
2
