diaedge

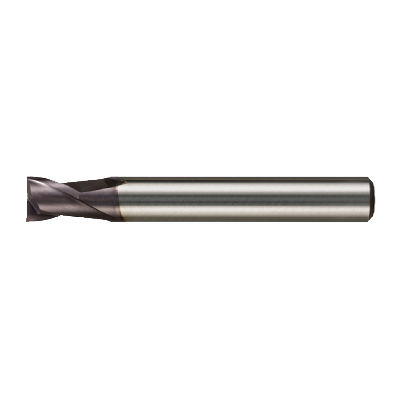

MS2ESD0400L45S04
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

330755

ANSI

MS2ES/4X45X4

ISO

MS2ESD0400L45S04

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

3

Regular price $37.56 USD
Regular price Sale price $37.56 USD
Sale

EDP

330755

ANSI

MS2ES/4X45X4

ISO

MS2ESD0400L45S04

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

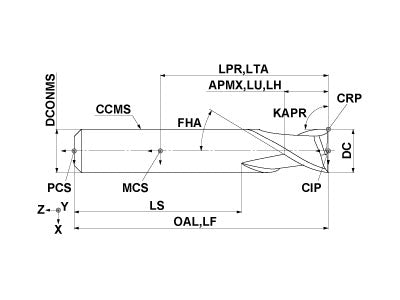

  • Drawings
  • Technical Information
MS2ESD0400L45S04
Coolant
External
Hand
Right

Unit: mm

DC
4
APMX
4
LU
4
LH
4
OAL
45
DCONMS
4
FHA
30
ZEFP
2
ZEFF
2
MS2ESD0400L45S04

Unit: mm

DC
4
APMX
4
LU
4
LH
4
OAL
45
DCONMS
4
FHA
30
ZEFP
2
ZEFF
2
