diaedge
MS3ESD0500L35S06
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

330886

ANSI

MS3ES/5X35X6

ISO

MS3ESD0500L35S06

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

1

Regular price $48.01 USD
Regular price Sale price $48.01 USD
Sale

EDP

330886

ANSI

MS3ES/5X35X6

ISO

MS3ESD0500L35S06

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

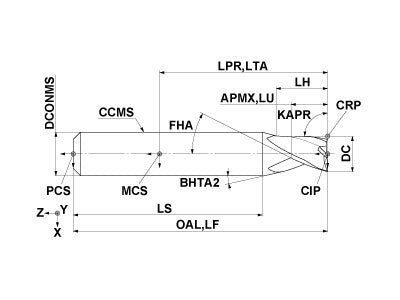

  • Drawings
  • Technical Information
MS3ESD0500L35S06
Coolant
External
Hand
Right

Unit: mm

DC
5
APMX
5
LU
5
LH
6.2
OAL
35
DCONMS
6
BHTA2
15
FHA
30
ZEFP
3
ZEFF
3
MS3ESD0500L35S06

Unit: mm

DC
5
APMX
5
LU
5
LH
6.2
OAL
35
DCONMS
6
BHTA2
15
FHA
30
ZEFP
3
ZEFF
3
