diaedge
MS3ESD0600L35S05
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

330894

ANSI

MS3ES/6X35X5

ISO

MS3ESD0600L35S05

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

1

Regular price $58.83 USD
Regular price Sale price $58.83 USD
Sale

EDP

330894

ANSI

MS3ES/6X35X5

ISO

MS3ESD0600L35S05

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

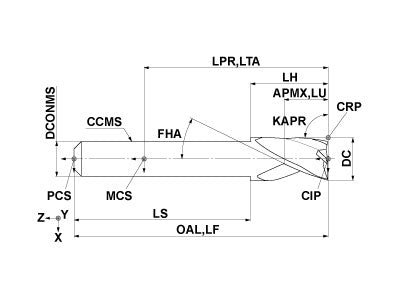

  • Drawings
  • Technical Information
MS3ESD0600L35S05
Coolant
External
Hand
Right

Unit: mm

DC
6
APMX
6
LU
6
LH
6.5
OAL
35
DCONMS
5
FHA
30
ZEFP
3
ZEFF
3
MS3ESD0600L35S05

Unit: mm

DC
6
APMX
6
LU
6
LH
6.5
OAL
35
DCONMS
5
FHA
30
ZEFP
3
ZEFF
3
